Jaltone Building Management Platform

Bridge Platform Software is a highly integrated building automation management system. Built on the convenient B/S architecture,it deeply converges three core modules: building automation,intelligent lighting and energy management. It enables intelligent management and coordinated control of all public electromechanical equipment within buildings. Designed on the philosophy of decentralized control and centralized management, the system effectively enhances occupant comfort and equipment operational efficiency, while cutting both labor and energy consumption costs significantly. Equipped with real-time data monitoring and optimized operation strategies, Bridge Platform empowers enterprises to develop an efficient, low-carbon and sustainable smart building operation mode,and comprehensively upgrade the core competitiveness of building property management.

Main Features

Easy Deployment & Easy Access

The platform supports local and cloud deployment, and is compatible with multiple operating systems including Windows and Linux.
One-click deployment and installation greatly saves engineers'deployment time.
Adopting the B/S architecture, the system requires no dedicated client installation.You can remotely monitor and manage electromechanical equipment and environmental parameters across the entire building anytime and anywhere via a browser,with unlimited client access.
The platform supports browser-based programming and simulation debugging, enabling engineers to maintain and optimize the system more efficiently and conveniently

Refined permission management ensures system security

Jaltone Platform is built with role-based access control(RBAC), which allows assigning refined operational permissions to different accounts based on organizational structure and job responsibilities.
The system supports creating an unlimited number of user accounts. All login, logout and key operational behaviors of every account are fully recorded by the system and generate audit logs, providing solid data support for security traceability and operational management.

Easy Integration

Designed fully based on open standards, the platform supports multiple communication protocols such as BACnet, MQTT and HTTP, requiring no special software or plug-ins.

Centralized Equipment Management &O&M

Jaltone Platform delivers in-depth management capabilities for DDC controllers and gateway devices, · going far beyond simple data monitoring. It supports batch firmware upgrades, online programming and simulation debugging, greatly improving the efficiency of system optimization and maintenance.
The platform automatically backs up and centrally manages all DDC control logic and program source codes, completely eliminating the risk of program loss. When replacing controllers, one-click rapid deployment and restoration are available, greatly reducing O&M complexity and time cost.

Easy to Operate

The platform features a brand-new user interface with full Chinese design and real-time dynamic graphics,delivering a stylish look and user-friendly operation.
Built-in graphic editor and abundant image library eliminate the need for additional graphic editing software,allowing engineers to create graphical interfaces directly.
Navigation by space or subsystem enables users to view and operate all controlled equipment more intuitively.

Technical Parameters

name	Value
Processor	Minimum: Intel Core i5@2.0GHz or equivalent, Recommended:Intel Core i5@3.0 GHz or higher
Hard Disk	Minimum: 100GB(Note: Hard disk demand will increase as historical data accumulates. System storage upgrade and expansion are required when the space is insufficient.)
RAM	Recommended: 8GB RAM or higher
Operating System	Microsoft Windows 10 (64-bit); Microsoft Windows 11 (64-bit); Microsoft Windows Server 2012+(64bit) ; KylinOS, Ubuntu Kylin and other ;Linux operating systems ; Ubuntu(18.04,20.04,22.04)
Database	H2/ PostgresSQL/ Cassendra
HTTP/HTTPS/WebSocket	Non-binary, default ports 80/443
MQTT	Binary, default port 1883
SMTP	Email sending, default port 25
BACnet	BACnet/IP,port configuration,default value 47808(UDP)

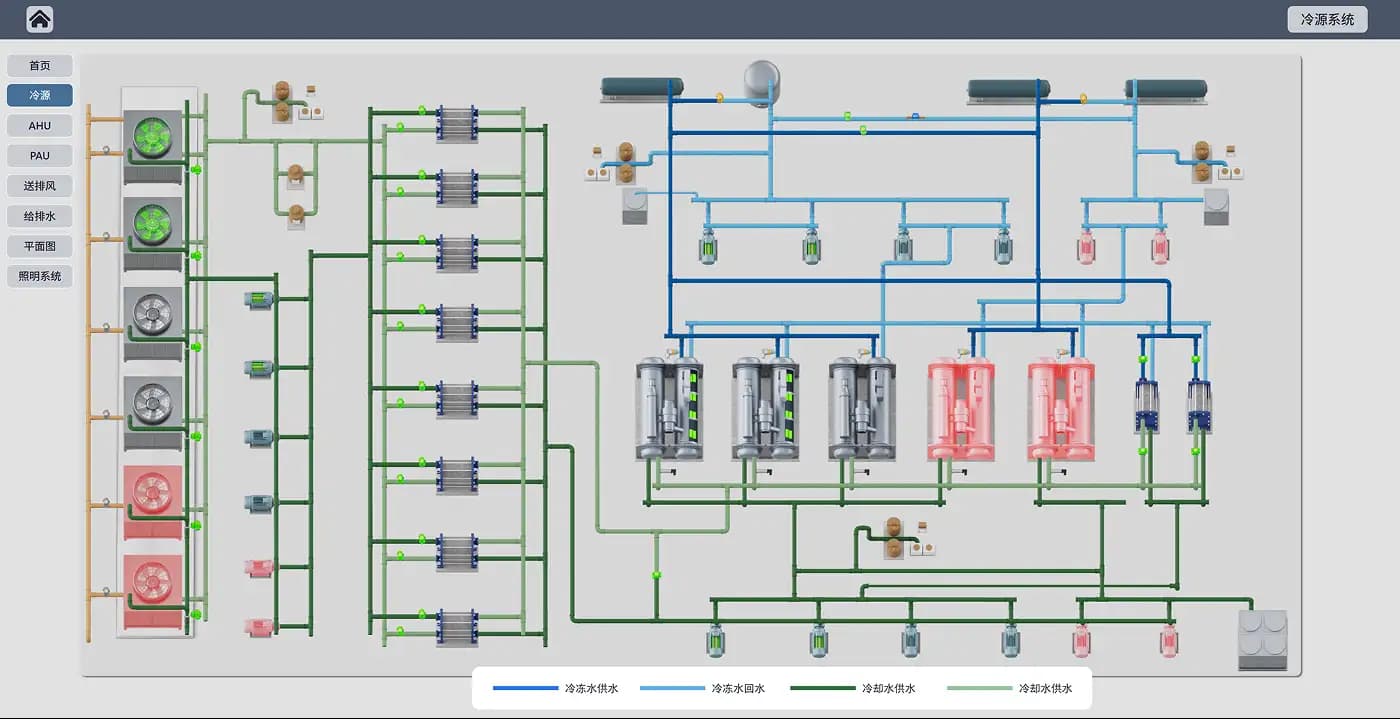

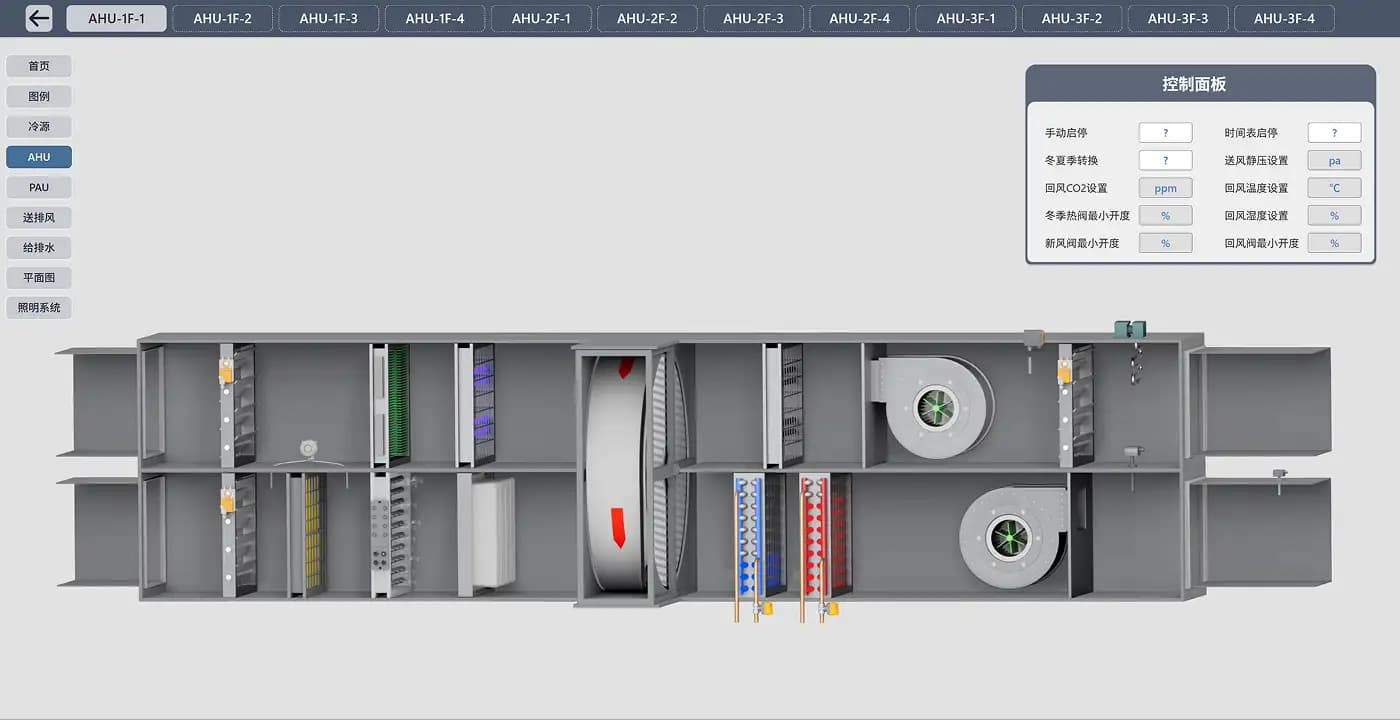

User Dynamic GUI

Browser & client all-in-one tool with drag-and-drop interaction, intuitive and easy to use. Outstanding graphics processing capability: supports GIF animations, SVG vector graphics and Canvas 3D elements. Built-in rich scenario application support: massive building-control dedicated artistic-grade graphic library to quickly achieve high-quality visualization effects. Powerful layer interaction functions: layer adjustment, rotation and scaling, as well as font color and animation configuration. Supports both graphic point binding and path point binding for flexible selection, delivering intuitiveness and high efficiency. Real-time controller data update: adopts bidirectional persistent connection communication based on WebSocket/MQTT. Fully scalable: customizable graphic library components and abundant basic SVG elements available.

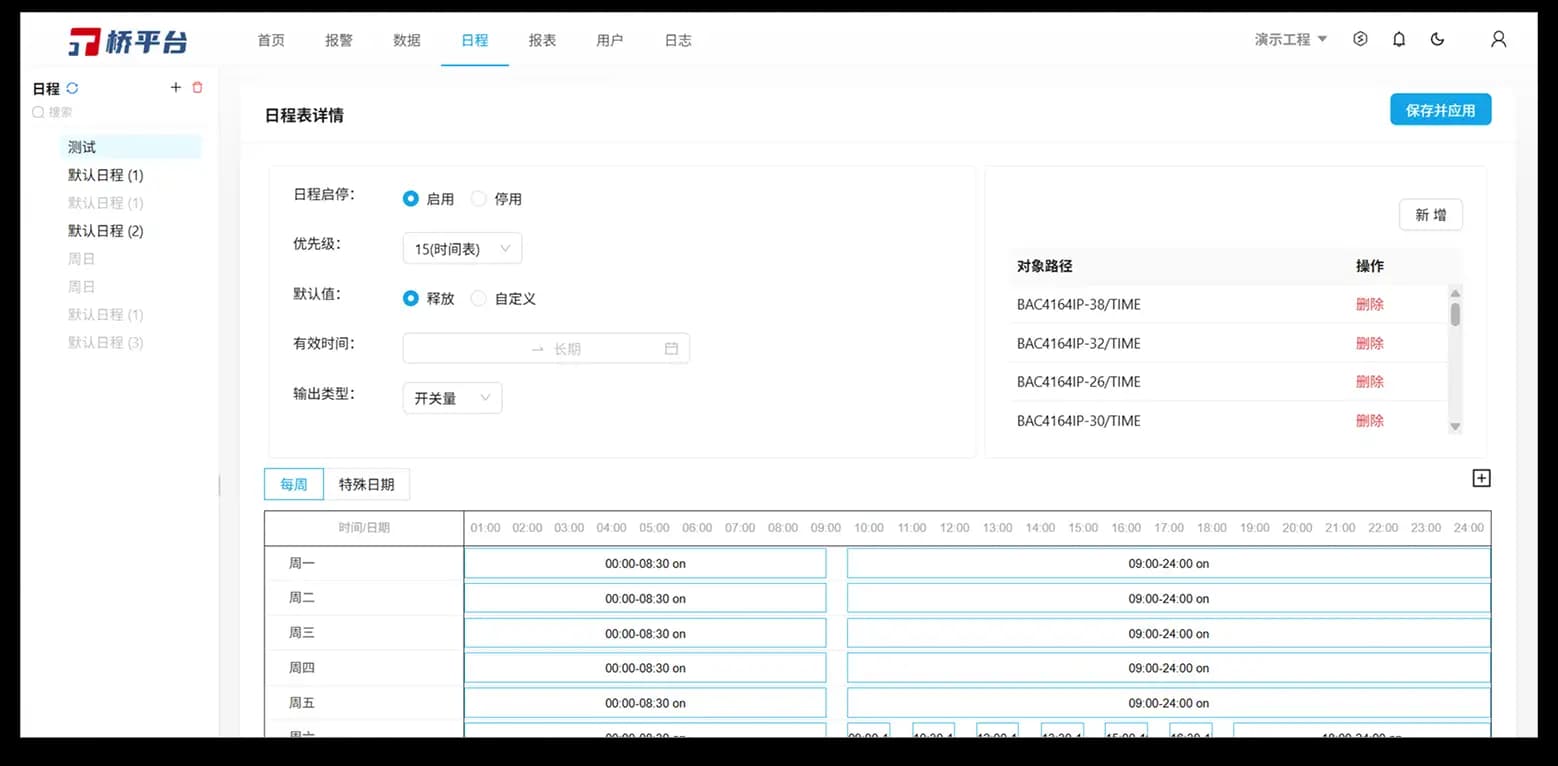

Schedule

Allows users to define the operating status of special dates and events. Supports combined configuration across multiple dimensions: week, date and time period. Multiple priority levels are available. It can be linked into control logic with visualized effect preview. The schedule is synchronously stored in local DDC controllers. Even in case of network failure, the normal operation of on-site equipment remains unaffected.

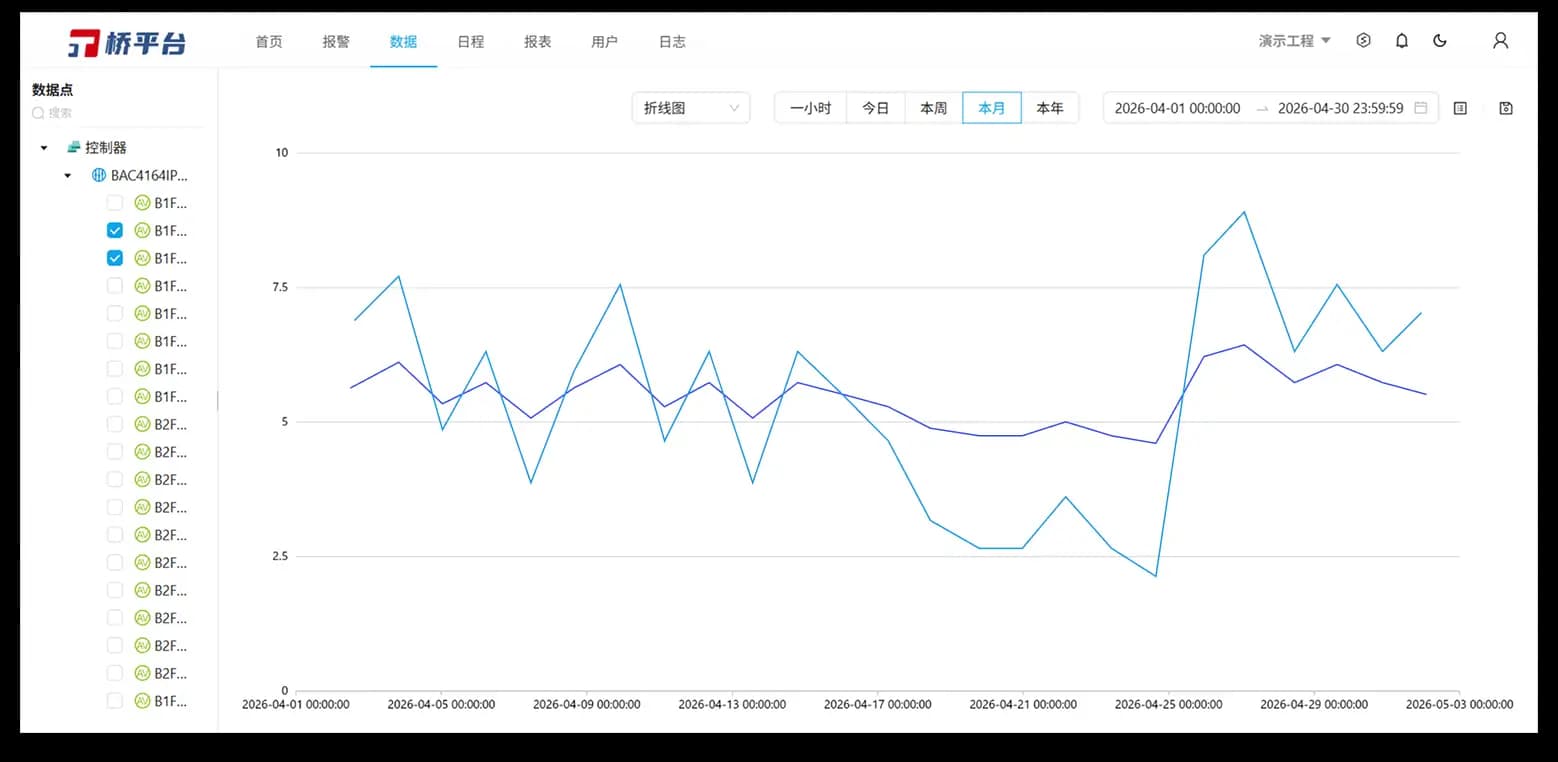

Trends & Charts

Data-oriented chart visualization engine: line charts / scatter plots ready for out-of-the-box use. Supports multi-dimensional cross analysis. Provides rich visualized interactive capabilities: overview first, with zoom and filter to view details on demand. Supports scheduled data recording, device-side offline storage, and power-off data persistence.

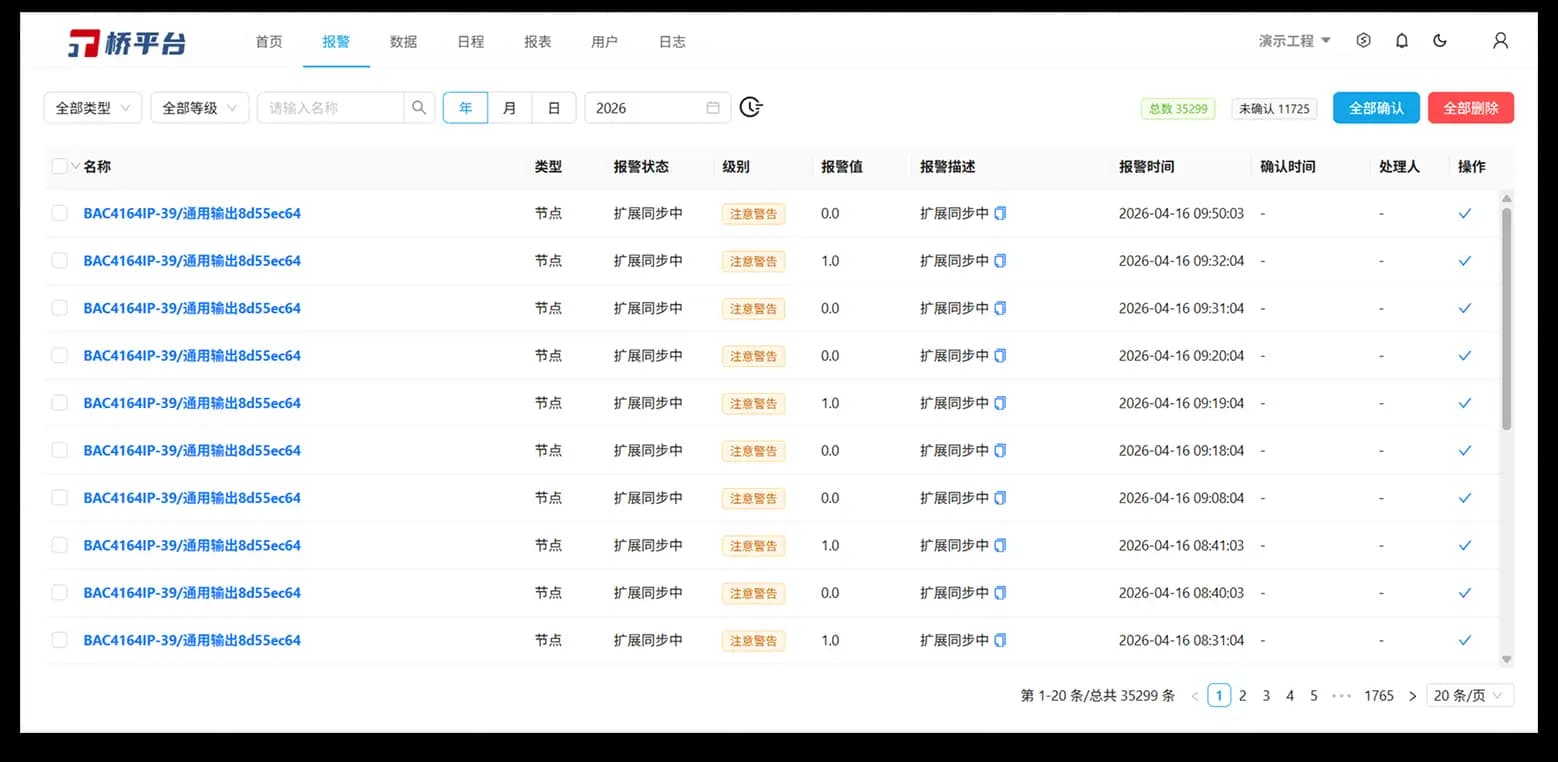

Alarms & Logs

Supports both system default alarms and user-program configurable alarms. 5 alarm levels are configurable. Alarm texts support dynamic configuration. Detailed logs are recorded completely. Supports multi-dimensional data report export, including alarm reports, historical data reports, user behavior reports and more.

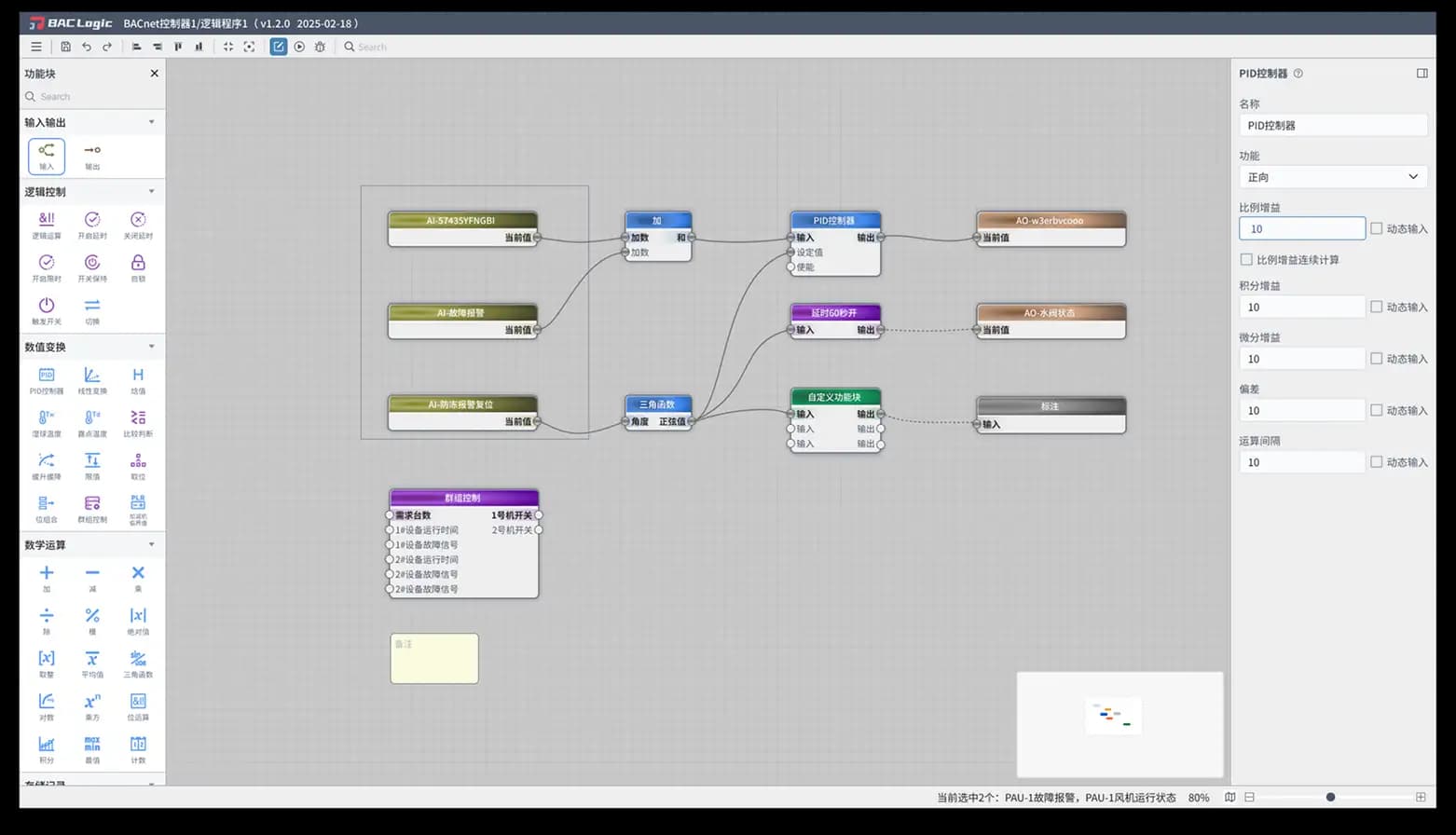

Graphical Program Logic Editing

Intuitive graphical programming tool with zero-code requirement. Supports real-time system analysis and fault diagnosis via web interface. Built-in powerful control module library, capable of handling both simple and complex control logic. Multiple engineering graphic programs adaptable to most HVAC equipment. In-depth controller integration, enabling instant upload and download. Control modules feature universally movable graphical representation. Supports standard BACnet object configuration. Offers highly flexible network input/output configuration.

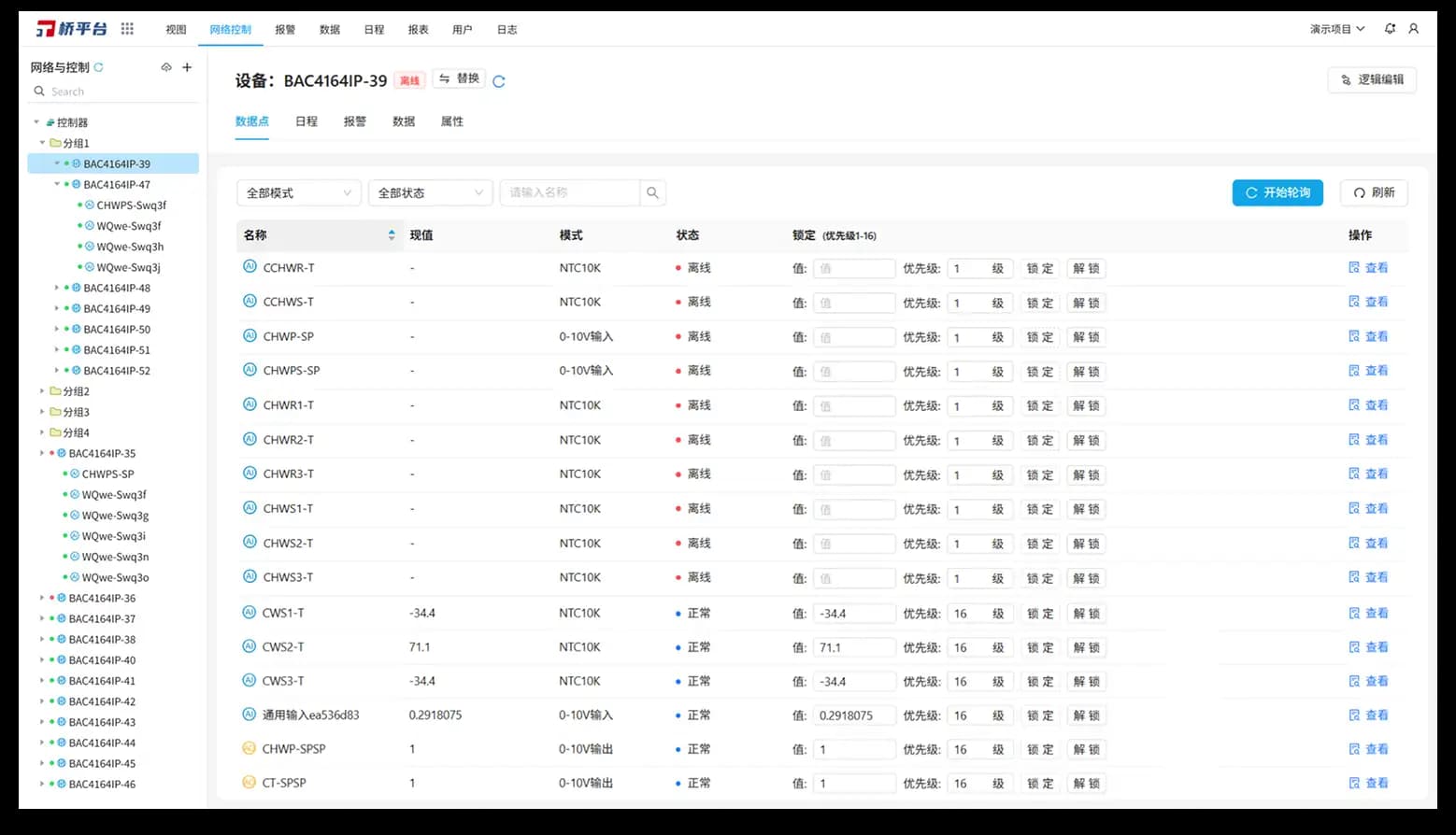

Controller Management

Intuitive tree-structured hierarchy; detailed equipment information dashboard. Supports configuration modification and OTA online upgrade. Enables input/output (IO) point status monitoring and batch modification of attributes.

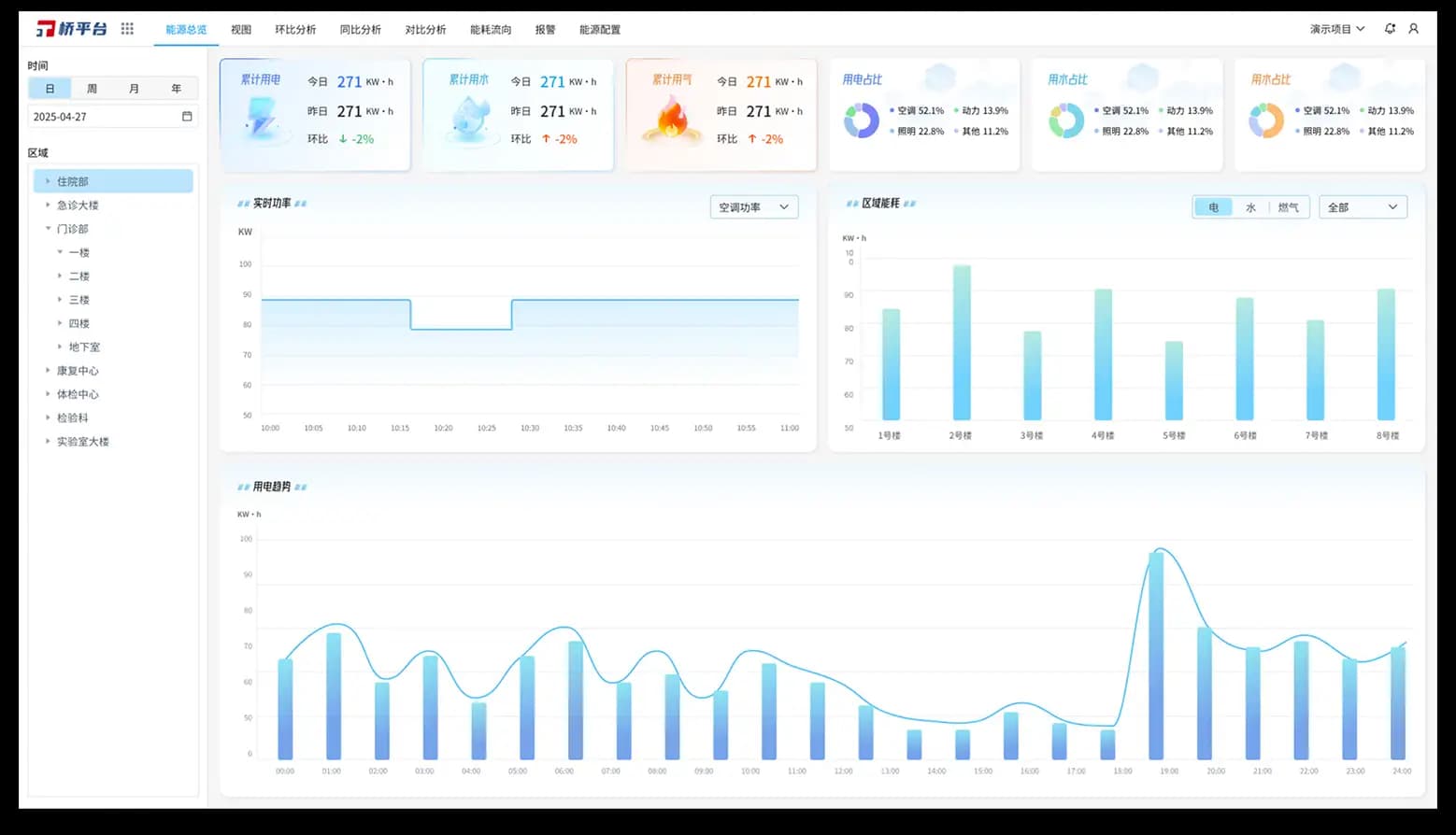

Energy Management and Analysis

The software supports energy consumption management and analysis functions, enabling real-time power and electricity trend curves. By analyzing energy consumption through year-on-year and month-on-month comparisons, it identifies high-energy-consuming devices and optimizes their control strategies to reduce the system's energy consumption.
